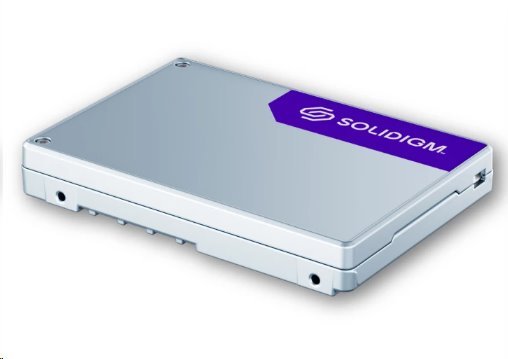

Solidigm™ SSD D7-P5620 Series (3.2TB, 2.5in PCIe 4.0 x4, 3D4, TLC) Generic No OPAL Single Pack

SSD D7-P5620 Series (3.2TB, 2.5in PCIe 4.0 x4, 3D4, TLC)

Essentials
Product Collection: SSD D7-P5620 Series
Capacity: 3.2 TB
Lithography Type:144L TLC 3D NAND
Use Conditions: Server/Enterprise

Performance Specifications
Sequential Bandwidth - 100% Read (up to): 6700  MB/s
Sequential Bandwidth - 100% Write (up to): 3600  MB/s
Random Read (100% Span): 1000000 IOPS (4K Blocks)
Random Write (100% Span): 341000 IOPS (4K Blocks)
Latency - Sequential Read (typ.): 10µs
Latency - Sequential Write (typ.): 13µs
Latency - Read: 75µs
Latency - Write: 15µs
Power - Active: 15W
Power - Idle: 5W
Reliability
Vibration - Operating: 2.17 GRMS (5 - 700 Hz) Max
Vibration - Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Shock (Operating and Non-Operating): 1,000 G (Max) at 0.5 msec
Operating Temperature Range: 0°C to 70°C
Endurance Rating (Lifetime Writes): 17.5 PBW
Mean Time Between Failures (MTBF): 2 million hours
Uncorrectable Bit Error Rate (UBER): 1 sector per 10^17 bits read
Warranty Period: 5  yrs

Package Specifications
Weight: 165g +/- 5g
Form Factor: U.2 15mm
Interface: PCIe 4.0 x4, NVMe
