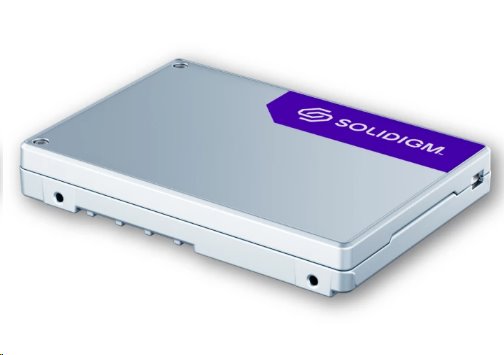

Solidigm™ SSD D7-P5520 Series (15.36TB, 2.5in PCIe 4.0 x4, 3D4, TLC) Generic No OPAL Single Pack

SSD D7-P5520 Series (15.36TB, 2.5in PCIe 4.0 x4, 3D4, TLC)

Essentials
Product Collection: SSD D7-P5520 Series
Capacity: 15.36 TB
Lithography Type: 144L TLC 3D NAND
Use Conditions: Server/Enterprise

Performance Specifications
Sequential Bandwidth - 100% Read (up to): 7100  MB/s
Sequential Bandwidth - 100% Write (up to): 3700  MB/s
Random Read (100% Span): 1000000 IOPS (4K Blocks)
Random Write (100% Span): 200000 IOPS (4K Blocks)

Latency - Sequential Read (typ.): 10µs
Latency - Sequential Write (typ.): 13µs
Latency - Read 75µs
Latency - Write 20µs
Power - Active 20W
Power - Idle 5W
Reliability
Vibration - Operating: 2.17 GRMS (5 - 700 Hz) Max
Vibration - Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Shock (Operating and Non-Operating): 1,000 G (Max) at 0.5 msec
Operating Temperature Range: 0°C to 70°C
Endurance Rating (Lifetime Writes): 28.0 PBW
Mean Time Between Failures (MTBF): 2 million hours
Uncorrectable Bit Error Rate (UBER): 1 sector per 10^17 bits read
Warranty Period: 5  yrs

Package Specifications
Weight: 165g +/- 5g
Form Factor: U.2 15mm
Interface PCIe 4.0 x4, NVMe
