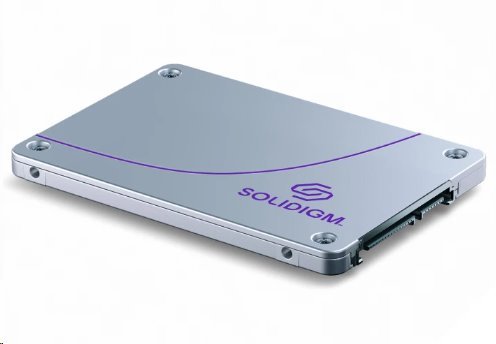

Solidigm™ SSD D3-S4620 Series (480GB, 2.5in SATA 6Gb/s, 3D4, TLC) Generic Single Pack

Solidigm™ D3-S4620 Series (480GB, 2.5in SATA 6Gb/s x4, 3D4, TLC) Generic Single Pack

Essentials
Product Collection: Solidigm™ D3-S4620 Series
Capacity: 480 GB
Lithography Type: 144L TLC 3D NAND

Performance Specifications
Sequential Bandwidth - 100% Read (up to): 550
Sequential Bandwidth - 100% Write (up to): 500
Random Read (100% Span): 85000 IOPS
Random Write (100% Span): 48000 IOPS
Latency - Sequential Read (typ.): 36µs
Latency - Sequential Write (typ.): 36µs
Latency - Read: 103µs
Latency - Write: 43µs
Power - Active: 2.9W
Power - Idle: 1W

Reliability
Vibration - Operating : 2.17 GRMS (5 - 700 Hz) Max
Vibration - Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Shock (Operating and Non-Operating): 1,000 G (Max) at 0.5 msec
Operating Temperature Range: 0°C to 70°C
Endurance Rating (Lifetime Writes): Up to 4.7 DWPD / Up to 4.0 PBW
Mean Time Between Failures (MTBF): 2 million hours
Uncorrectable Bit Error Rate (UBER)_ < 1 sector per 10^17 bits read
Warranty Period: 5 yrs

Package Specifications
Weight: 60.7 gms
Form Factor: 2.5" 7mm
Interface: SATA 3.0 6Gb/s
